Ultralight HPL White Poplar XPS Sandwich Panel

Ultralight HPL Poplar XPS Sandwich Panel with an insulating XPS (extruded polystyrene) core combined with plywood that is made of 100% European poplar from sustainable plantations.

Panels are coated with decorative laminates, giving an exceptional resistance to impact and scratching.

The extruded polystyrene (XPS) used for the Ultralight core as insulation is an HBCD-free
flame retardant component and contains none of the foam blowing agents CFC and HCFC.
According to Specification STM-S-001, Index D (2014), Ultralight possesses a very low
smoke gas index and has been classified as F1, a material of low toxicity.

Combining the excellent mechanical properties of Garnica plywood - lightweight, stable and easily machinable - with an insulating and ultralight material such as extruded polystyrene, produces a panel with improved performance.

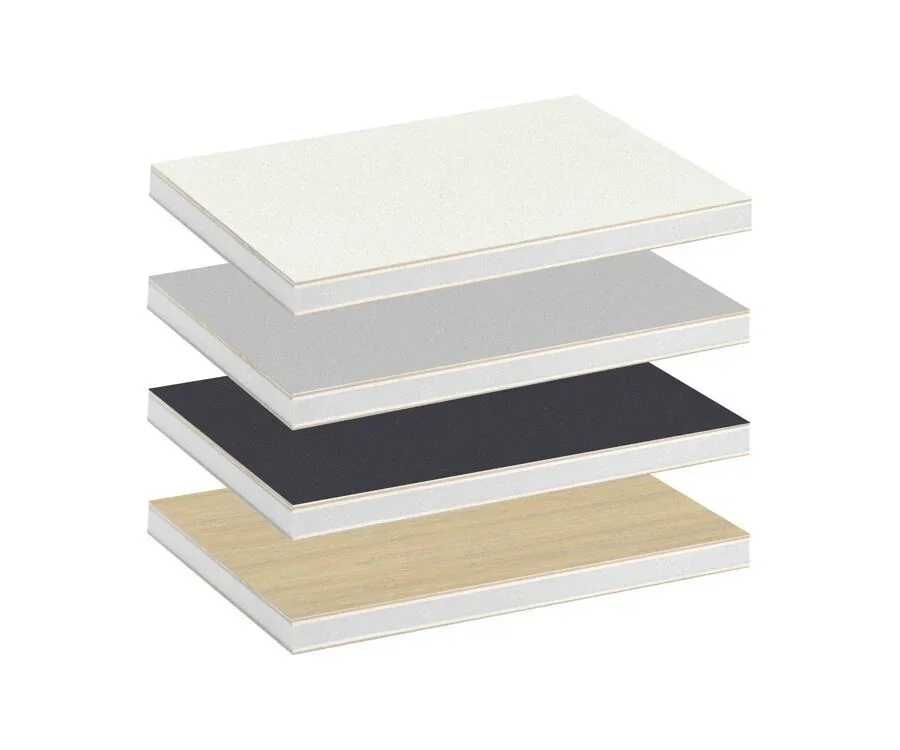

Composition: HPL/ Poplar Ply 4.5mm/ XPS core/ Poplar Ply 4.5mm/ HPL

Glue Type: Class I (interior) according to EN 636

Emissions: Class E1 according to EN 13986

Face grade: BBA/BBA: BBA faces with natural colouring of the poplar heartwood and occasional presence of knots. Both faces closed and repaired*. Ideal for lamination with standard HPL and veneers.

* Except for thin panels (3-ply), in which only the top face is repaired.

• Exceptional lightness of 329 kg/m³ (Density: total thickness of 18 mm (4.5 + 9 + 4.5 composition) ± 5% tolerance.)
• Exceptional thermal and acoustic insulation.
• Dimensional stability. Excellent results in terms of elasticity and modulus of rupture.
• Easily machinable.
• Sustainably sourced from the certified European plantations.
• Scratch and impact resistant laminated coating.

 “R” thermal resistance, m²·K/W (kelvins per watt): 15mm - 0.411, 18 mm - 0.496

“U” thermal transmittance (W/m²K): 15 mm - 2.44, 18 mm - 2.01

Density: 329 kg/m³

Panel weight:

   15x2500x1220mm - 15 kg (4.9 kg/m²),

   18x2500x1220mm - 18 kg (5.9 kg/m²)

Manufacturer: Garnica

Country of origin: Spain, Europe
