G-Brick Duraply XPS Poplar Sandwich Panel 50x2500x1200mm

G-Brick Duraply XPS Poplar Sandwich Panel is a Structural Insulated Panel with high mechanical performance, recommended as a construction system for passive house or high-energy-efficiency projects.

Combining Garnica plywood sourced from sustainable plantations with a lightweight element, such as XPS (extruded polystyrene), enhances mechanical performance, resulting in a unique, lightweight, and structurally sound product with excellent thermal and acoustic insulation, and is also environmentally friendly.

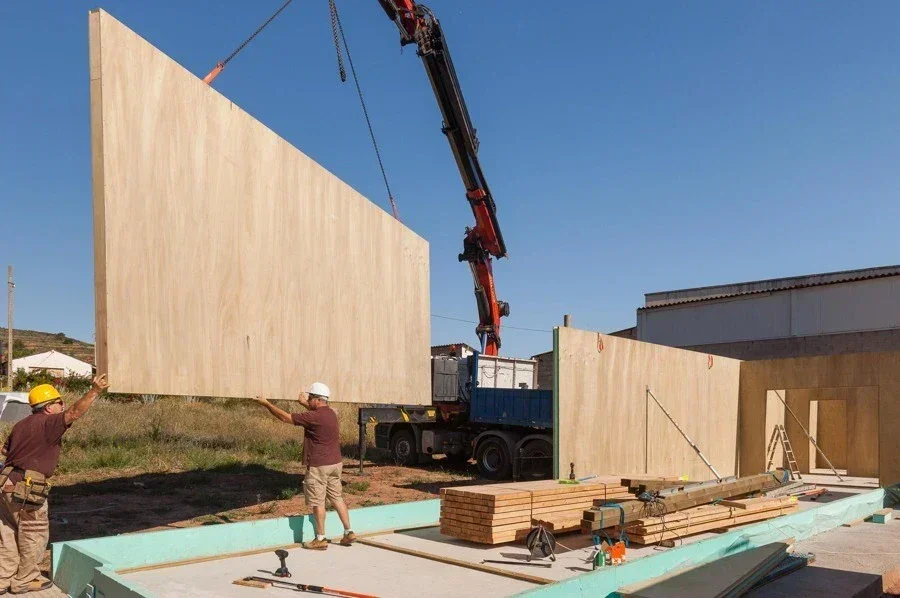

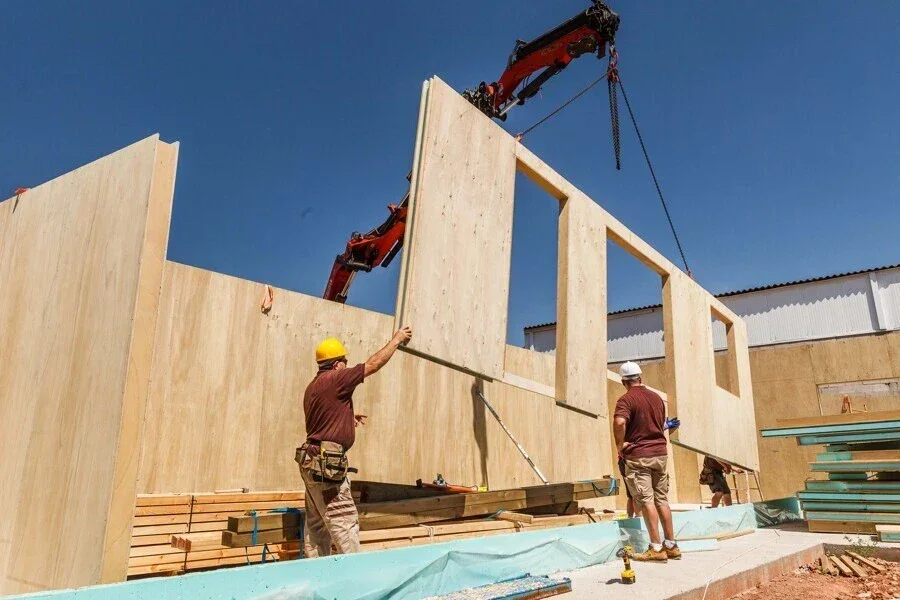

The high degree of industrialisation of the product allows for a significant reduction in time and costs associated with its on-site installation.

R value (Thermal Resistance m² x K/W): 1.21

Panel Size: 50x2500x1200 mm

Panel weight:  50x2500x1200 mm - 29 kg

Thickness: 50 mm

Density: 192 kg/m³

Composition: Duraply BBA 10 mm / XPS core 30 mm / Poplar Plywood BBA 10 mm

Glue Type: Class III (exterior WBP) A-Bond according to EN 636

Emissions: Class E1 according to EN 13986

Finish: Duraply Poplar BBA on the exterior face, BBA poplar plywood on the internal face.

• Lightweight panels with structural and decorative capabilities.
• Exceptional insulation. Both thermal and acoustic.
• Passive House (Passivhaus) Long-life near-zero-energy projects.
• Exceptional properties. High load capacity, dimensional stability and lightness.
• Industrialised product. Reduced handling time and costs.
• Design and versatility, a wide range of formats and finishes available.
• Sustainability. Certified fast-growing European plantations.

Manufacturer: Garnica, Spain
